Manufacturing Center
See the lines. Know the equipment. Verify the process.
Full SMT, through-hole, box-build and test capability under one roof in Changsha — the same lines that have shipped medical, automotive and industrial electronics since 2002. US orders are produced and shipped from this facility.
Process
Standard build flow
Every unit follows the same routed process with full traceability records.
SMT
- 01
Solder Paste Printing
Stencil printing with SPI (solder paste inspection) on 100% of boards before placement.
- 02
Component Placement
High-speed and flexible placers handle 01005 passives up to fine-pitch BGA and connectors.
- 03
Reflow Soldering
Multi-zone reflow with profiled thermal curves per board type, logged per batch.
- 04
AOI Inspection
Automated optical inspection on all SMT-side joints; X-ray for BGA and hidden joints.
DIP
- 01
Through-Hole Assembly
Wave or selective soldering for through-hole components and connectors.
Test
- 01
In-Circuit Test
ICT validates assembly integrity and component values before functional test.
- 02
Functional Test
Customer-specific functional test fixtures verify the assembled unit end-to-end.
Finishing
- 01
Conformal Coating
Optional conformal coating per IPC-CC-830 for harsh-environment and power products.
- 02
Box Build & Packing
Enclosure assembly, firmware loading, EOL test and retail-ready packaging.
Equipment
Production equipment
A representative list of the lines running in Changsha today.
SMT Placement

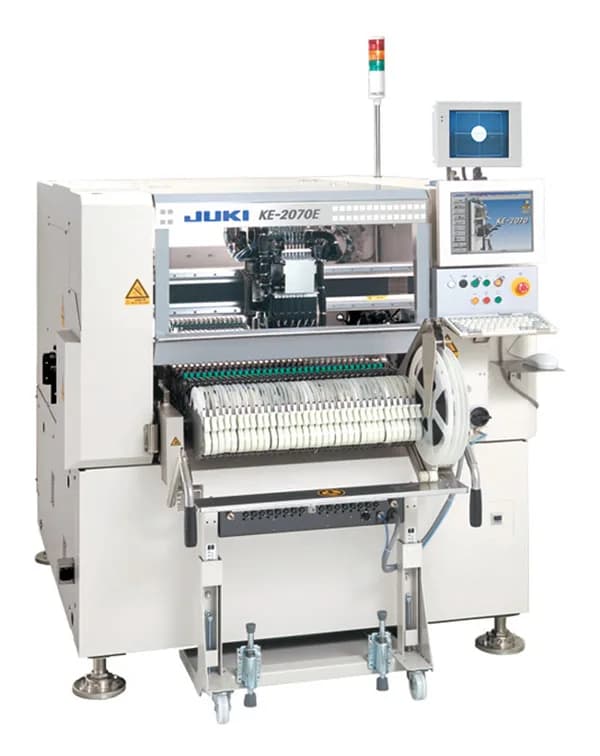

JUKI KE-2070E
Flexible mounter
Fine-pitch and IC placement

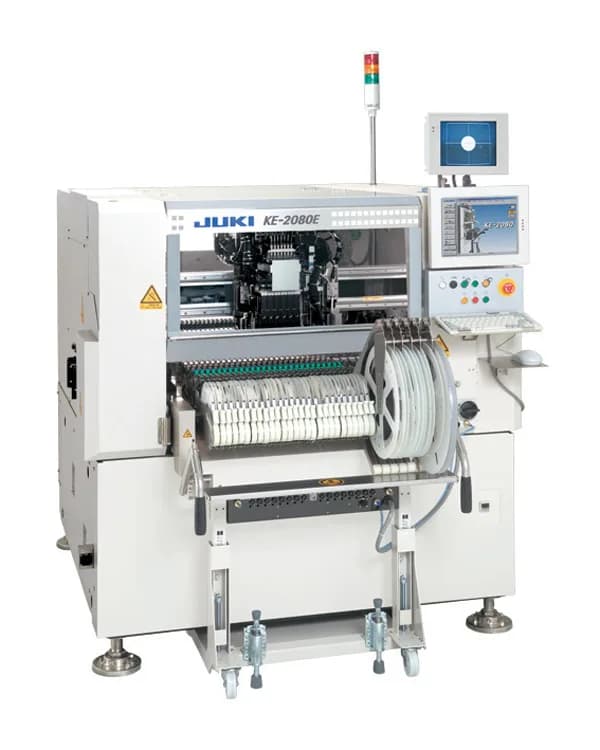

JUKI KE-2080E
Flexible mounter
Mid-volume IC and chip placement
JUKI FX-3RL
High-speed mounter
Ultra-high-speed chip placement
Automated Inspection

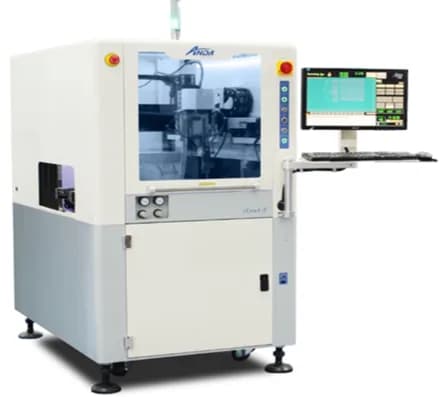

AOI station
Automated optical inspection
100% of SMT-side joints
Solder Paste Printing

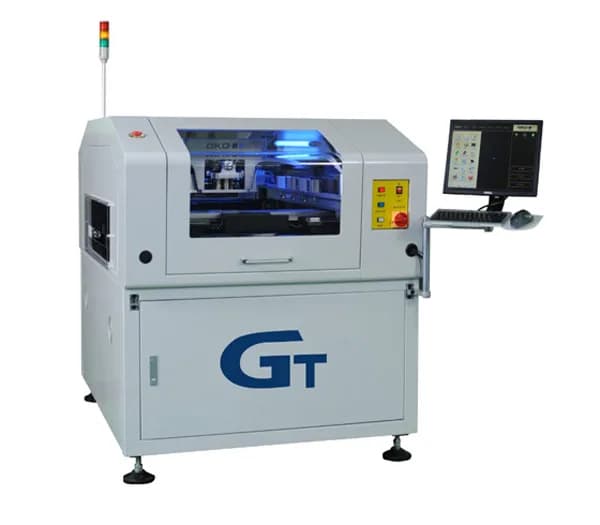

Automatic stencil printer
Solder paste printer
With SPI paste inspection
Reflow & Soldering

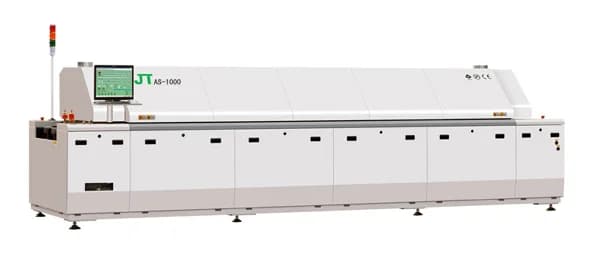

JT AS-1000
Reflow oven
Multi-zone profiled reflow
Selective soldering
Selective solder
Through-hole and connector soldering
Rework & Repair
BGA rework station
BGA rework
Dual-vision BGA/QFN removal and replacement

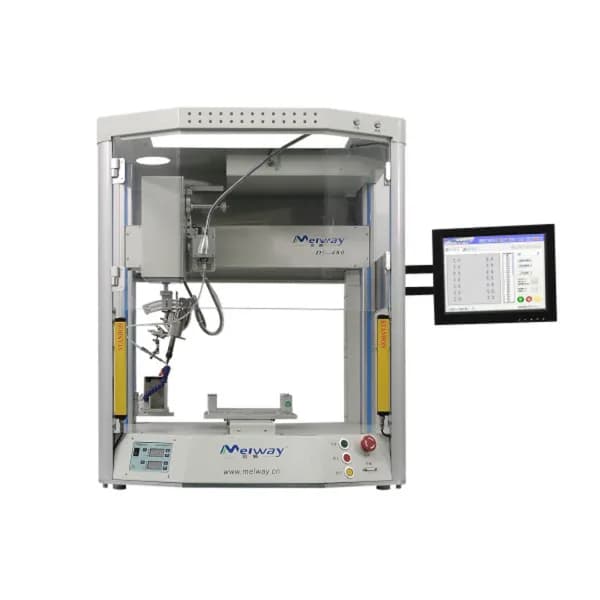

Merway soldering robot
Automated soldering
Consistent automated soldering for high-mix runs
Board Handling & Feeding
SMT feeder station
Component feeding
Tape-and-reel feeding for high-mount lines
PCB depanelizer
Depaneling
Router and punch depaneling
PCBA cleaning
Cleaning
Flux residue cleaning for high-reliability builds
Equipment photographs show the machines running on our floor today. Brands shown are the equipment OEMs, not customer products.
Facility

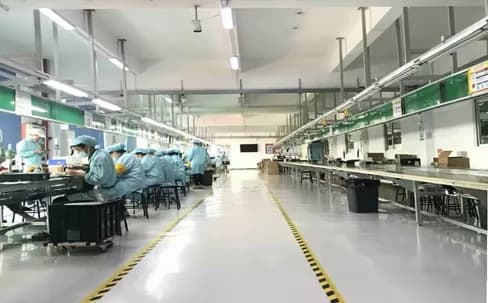

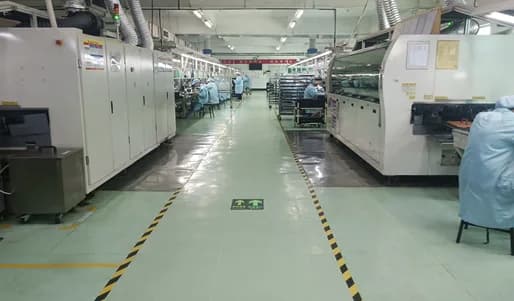

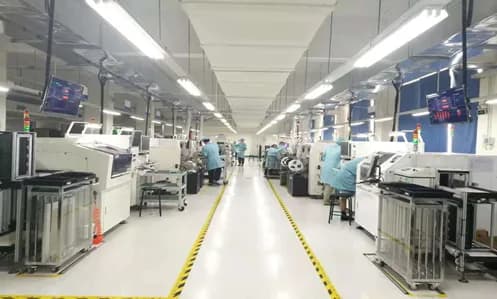

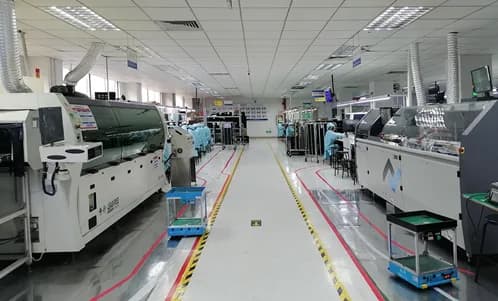

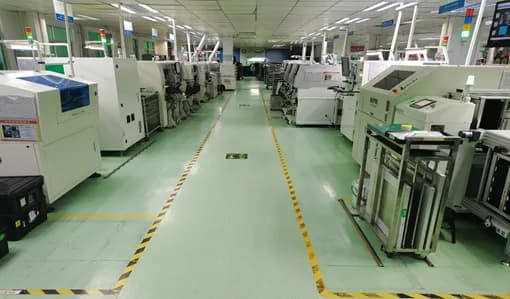

Inside the Changsha facility
SMT, through-hole, assembly and test under one roof — photographed on our production floor. This is the facility that produces and ships US orders.
Capacity
Capacity at a glance
Figures below are pending final company confirmation before publication — values marked unconfirmed are not shown to visitors.
2002
Manufacturing since
Changsha, China
Production & shipping base
Detailed line-count, headcount and daily-output figures are being finalized with our operations team. Ask your engineering contact for current capacity during quoting.
Process control
How the process stays honest
Controls that run on every build — not audit-day theater.
ESD control
Full ESD S20.20 program — grounded workstations, smocks, wrist straps and daily audits.
Moisture control
MSD handling and baking per J-STD-020 / J-STD-033 for moisture-sensitive components.
Traceability
Board-level serialization; per-unit process records retained for customer audits.
Inspection discipline
SPI, AOI and X-ray on SMT joints; 100% ICT or FCT before shipment.
First article control
FAI on every new build; sign-off required before volume release.
Change control
No unapproved process, component or source changes — ECN discipline with customer notification.
Factory tour video
A 2–3 minute walkthrough of the Changsha floor — receiving to packing — is in production. Ask for the preview link, or request it with your quote.
See it before you commit
Photos show equipment; video shows how a program actually moves through it. US customers can request a live video walkthrough of their own build area before first article approval.
Ready to put your build on these lines?
Send your BOM or Gerbers. You get a manufacturability review before anyone talks price.
